How to Enable Internet Connection Sharing (ICS) in Windows 7?

Vivek Nayyar March 16, 2011 5

In Small Office/Home Office (SOHO) scenarios or in homes where more than one or two computers are present it becomes mandatory to share a common Internet connection between all of them. Many people think that this task is complicated and should be performed only by a certified professional. But in many cases this is not true at all. Sharing an Internet connection between 2 to 3 computers is quite easy and does not require a highly qualified professional to do so. However, there are few prerequisites which are to be fulfilled before you can configure Internet Connection Sharing on your Windows 7 computer. Below is the list of them:

Prerequisites:

  • You should have at least two network interface cards present on your computer. One connected to the Internet and other connected to either other computer directly or to an ethernet switch or hub.
  • If you are trying to share your Internet connection between more than two computers you should have an ethernet switch or hub.
  • You should have ethernet cable of appropriate length. If you are using wireless medium you should have appropriate Wireless Access Point (WAP).

Once you have collected and connected all the above devices you can follow the steps given below to configure ICS on your Windows 7 computer.

  1. Click on Start button.
  2. At the bottom of start menu in the search box type ncpa.cpl and press enter key.
  3. On the Network Connections page right click on the LAN card which is connected to the Internet and from the context menu select Properties.
  4. In the Local Area Connection Properties box go to Sharing tab.
  5. Under Internet Connection Sharing category select Allow other network users to connect through this computer’s Internet connection radio button to enable ICS and click on Ok button to accept and confirm your selection.

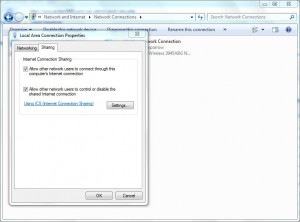

    Enable Internet Connection Sharing

Best Practices:

To avoid confusion, always rename the LAN cards by right-clicking on them and from the context menu selecting Rename option. LAN card which is connected to the Internet should be renamed as INTERNET or PUBLIC and the other one which is connected to local area network should be renamed as PRIVATE or LOCAL AREA NETWORK.

Note:

Make sure that the other LAN card and all other computers which are connected to Local Area Network are configured to obptain IP address from DHCP server (default configuration).

5 Comments »

  1. Alice July 26, 2011 at 9:42 am - Reply

    i have tried the above but there is no ‘sharing’ tab in my Local Area Network properties… any advice?

    Am using Windows 7 Home.

  2. Pedro August 23, 2011 at 4:02 am - Reply

    I’m having the same issue as I’me trying to create a domestic ad-hoc wireless conection, but it does not appear the sharing tab in the Local area network! Any thoughts? Thanks in advance

  3. Mohammed Abdul Wahed October 16, 2011 at 2:38 pm - Reply

    helo frnds, two users has asked similar questions which i faced in my past i,e sharing tab cant find in local area network properties , the solution is u should have two NIC cards (Network interface card) so one can be used for direct internet and rest for sharing .

  4. Samir Patel November 11, 2011 at 5:10 pm - Reply

    Ok,

    I u all if you cant find “Sharing” tab make sure if you have Two network card in your system. EX. Lan-Card, Wireless Card.

    Now if you want to share net through Lan-card, make sure “Allow Internet Sharing…..” is not checked in wireless card properties. Same for other option.

    Worked for me.

  5. sadikh January 10, 2012 at 11:06 pm - Reply

    I have done the above procedures except ‘sharing’ option not there. And i am sure I have lan and wireless card, but what is the alternative way in steady of ‘sharing’ option?
